Extend-A-Line Replacement Parts

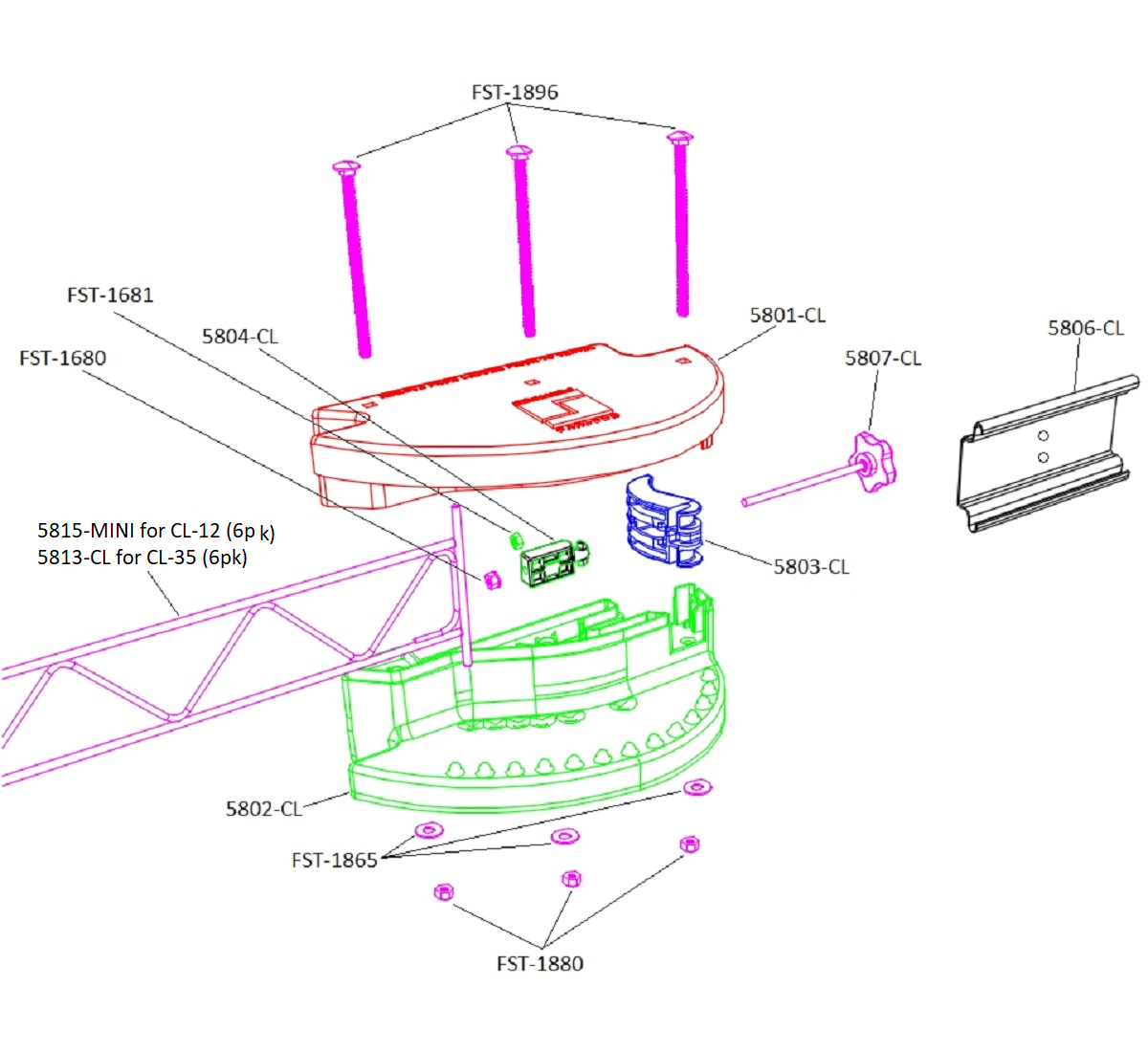

The following is a list of replacement or repair Extend-A-Line parts. All Extend-A-Lines ship complete.

Model 5801-CL – top plastic housing
Model 5802-CL
– bottom plastic housing
Model 5803-CL
– clamp jaw
Model 5804-CL
– sliding driver
Model 5806-CL

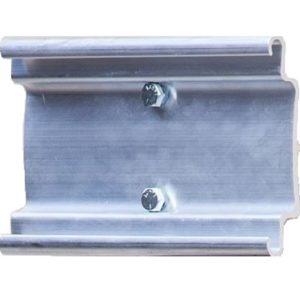

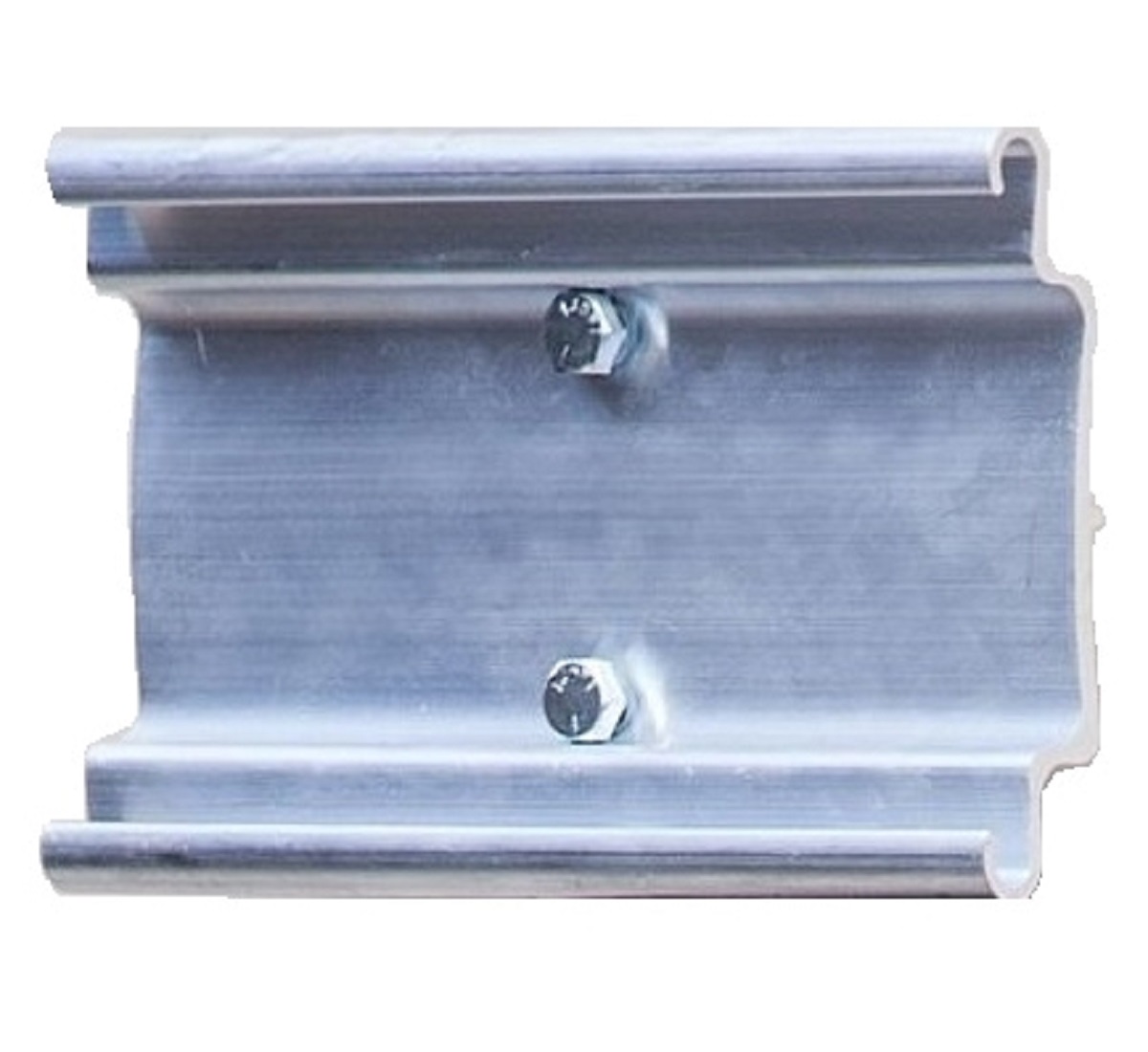

– aluminum mounting bracket
Model 5807-CL – thumb wheel (1/4-20 x 5-1/4″L)

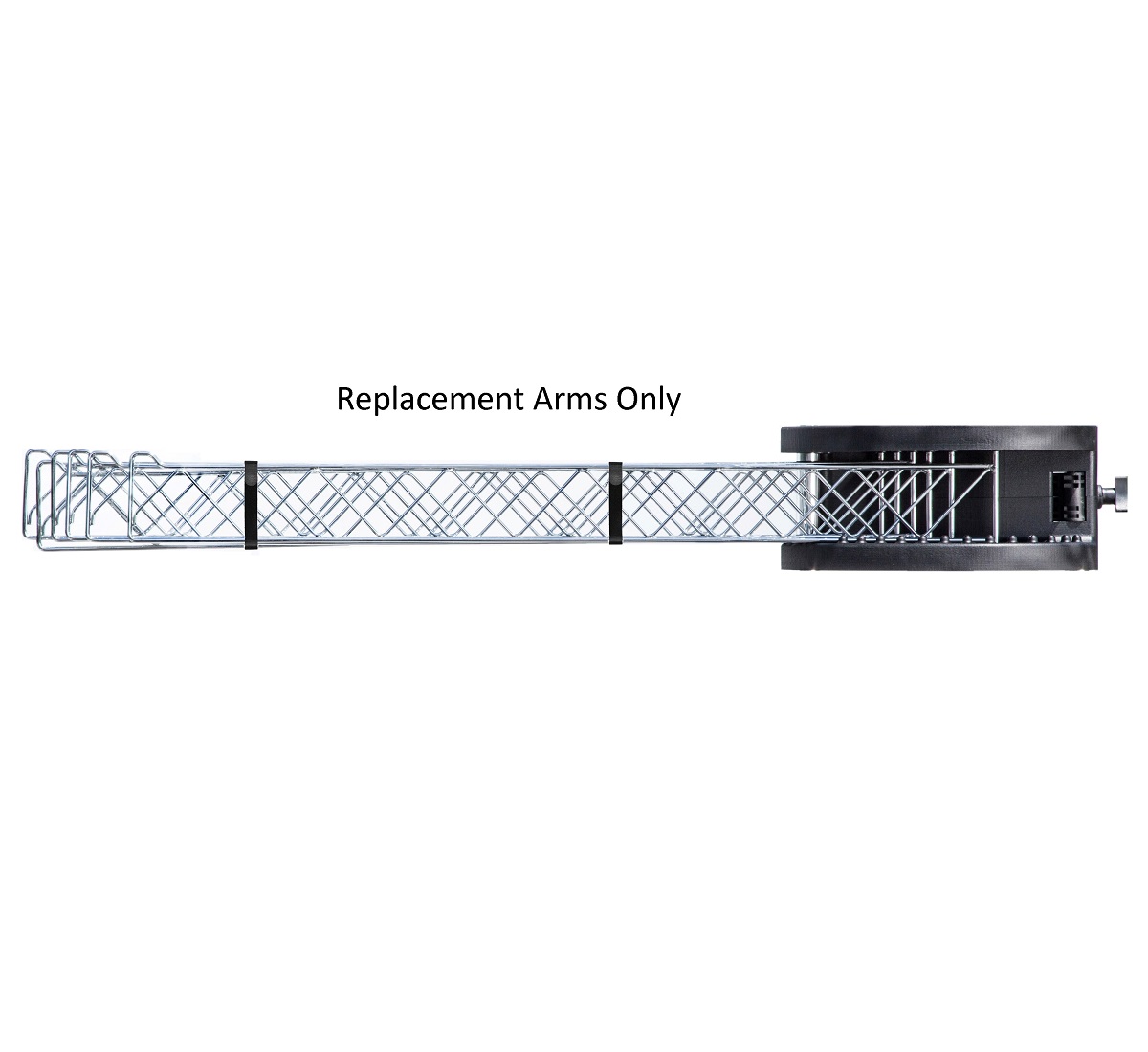

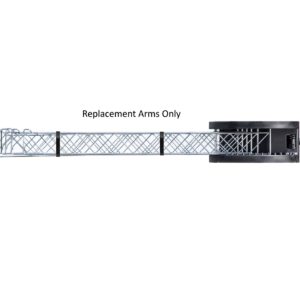

Model 5815-MINI – 12″ arms bundle (6 pc)
Model 5813-CL – 35″ arms bundle (6 pc)

The below nut/bolt hardware can be found at a local hardware store:
Model FST-1680
– 1/4-20 nylon lock nut
Model FST-1681 – 1/4-20 hex nut
Model FST-1865 – 5/16 SAE flat washer
Model FST-1880 – 5/16-18 nylon lock nut
Model FST-1896 – 5/16-18 x 5-1/2″ carriage bolt



Download Product Manual

$2.80$57.00

Clear
SKU: aluminum-wall-bracket-model-5806-cl_parentsku Category: Tags: , , ,

Additional information

Weight 2 lbs
Dimensions 10 × 10 × 4 in
Product Options

Model 5801-CL, Model 5802-CL, Model 5803-CL, Model 5804-CL, Model 5807-CL, Model 5813-CL, Model 5806-CL, Model 5815-MINI
